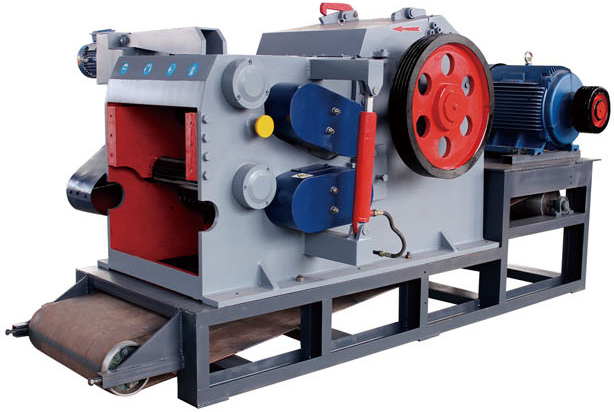

Drum Wood Chipper

Features

1、This series wood chipper can process various materials into chips at certain specifications. The materials include logs, undersized logs, timber residues(tree branches, twigs, etc.), wood processing residues(lath, skins, core logs, veneer waste, etc.) and some other non-wood fiber like bamboo, cotton stalks, reeds, rice straw, wheat straw, etc.
2、High strength and high precision box, carbide blades and imported bearing.
3、Compact structure, easy operation, high productivity, wide adaptability of raw materials, high quality wood chips, safe and reliable running, convenient maintenance.
4、It is adopted with hydraulic feeding mechanism.

Technical Parameter

Parameter / Model TFGX213 TFGX216 TFGX218 TFGX218D TFGX2110
Rotor dia(mm) 300 650 800 800 1000
Number of flying knives(pcs) 2 2 2 2 2×2
Feed opening size (mm) 120×300 180×500 225×680 240×780 330×1050
Knife rotor speed (rpm) 730 590 650 650 550
Feed speed ( m/min) 38 37.2 37 38 33
Max did of raw material ( mm ) 120 120 160 160 190
Wood chips length ( mm ) 26 30 30 30 30
Capacity( m3/h ) 8-16 10-18 15-20 38 75
Main motor power ( kw ) 45 55 110 132 220
Feed roller motor power ( kw ) 2×1.1 2×3 2×4 2×5.5 2×7.5
Weight ( kg ) 1200 4070 7000 8000 12500
