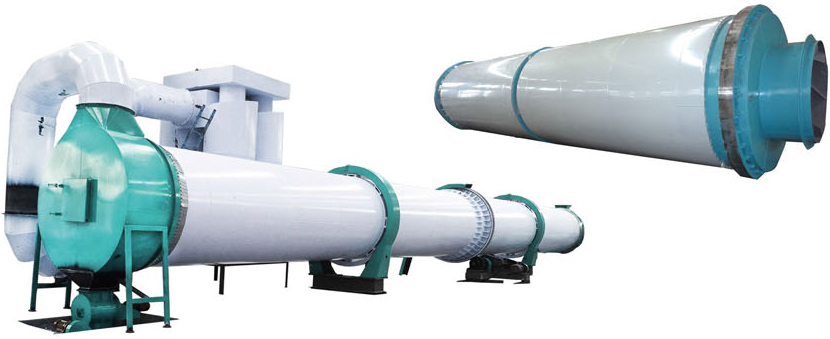

Rotary Dryer

Features

The drum dryer system mainly used for drying crushed sawdust moisture to below 15%, Bucket elevator send the materials to screw feeder and then into dryer. After drying by hot dry wind to achive moisture 1%-15%, send to pellet mill.
1. The design of three layer composite structure makes materials dried for three times in the dryer, high output and low energy consumption.
2. Multi-layer structure improves heat preservation effect in the drying cylinder and improves heat utilization.
3. The rolling speed of the dryer is adjustable, high-precision gear transmission and smooth operation.
4. The stove is in optimized design with new structure.
5. Gas collection system is equipped to prevent flames into the drying cylinder.
6. Water cooling suction air fan makes sure the fan lifetime.
7. Heat recovery system can be equipped.

Technical Parameter

Specification /Model Capacity(t/h) Theoretical water evaporation(Kg/h ) Overall dimension (L*W*H) Motor power (Kw) Energy demand (Kcal/h) Coal consumption (Kg/h ) Firewood consumption (Kg/h )
SG-5 0.7 500 5×1.7×2.7 15 500000 70 100-150
SG-10 1 700 6×2.3×2.7 22 680000 100 140-175
SG-15 1.5 1000 8×2.4×2.8 38 1000000 145 200-250
SG-25 2 1500 10×2.6×4 50 1500000 215 430-500
SG-35 3 2100 11×3.0×4.0 70 2050000 300 560-750
SG-40 4 2800 11×3.2×4.0 100 2750000 400 780-900
SG-60 6 4200 11×4.0×4.0 150 4150000 600 1150
